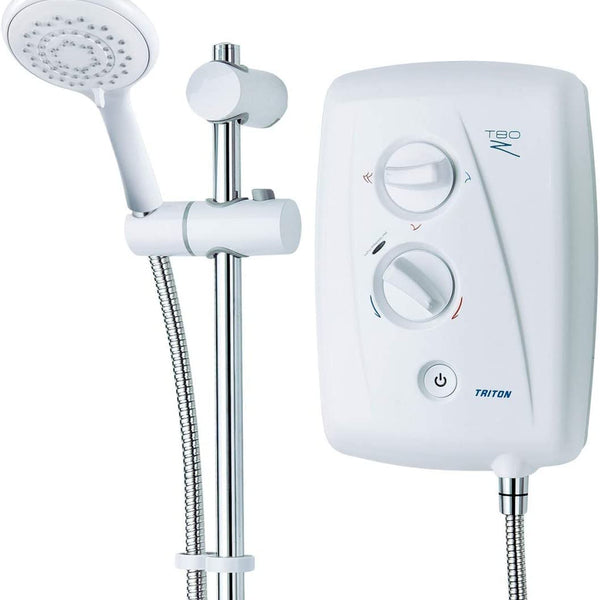

Triton T80Z Fast-Fit 7.5Kw Electric Shower - White and Chrome

The T80Z Fast-Fit is the ultimate replacement shower. This shower replaces most showers on the market and superseeds the Triton T80XR T70XR before it


Easy to fit
This shower accepts pipe and cable entry from all possible directions. Within the shower, the Swing-FitTM wiring terminal can swing left or right to ensure any existing cable will reach the connection. Similarly, the Swivel-FitTM water inlet connection can swivel left or right to match the direction of any exising pipework.

Seamless replacement
This shower covers the footprint of most electric showers,and is unlikely to expose any untiled areas or unused fixing holes. Adjustable shower rail brackets allow flexible positioning of wall fixings within tiles or on grout lines, or the reuse of previous fixing holes.
The tapered backplate gives a sleek and neat appearance on the bathroom wall.

Ideal size and shape for replacement installations

Flexible Electric Connections - Unique Swing-Fit terminal block allows left or right hand wiring connections.


Flexible Water Connections - Unique Swivel-Fit water inlet accomodates water connections from either the left or the right hand side of the unit.


Multiple water and electric entry points - see below
Flexible Kit - Adjustable distance between shower rail brackets
Installation Template - Assists with marking fixing holes and connections

Specifications of the Triton T80Z



Start/Stop Button Yes
Combined Start/Stop and Power Control No
Rotary Power Control Yes
Push Button Power Control No
Temperature Control Yes
Power on Indicator Yes
Installation Set Timer Setting No
Audible Alerts No

Number of Showerhead Spray Patterns 5
Shower Head Diameter 102mm / 4 inches
Rub Clean Nozzles Yes
Rail Diameter 19mm
