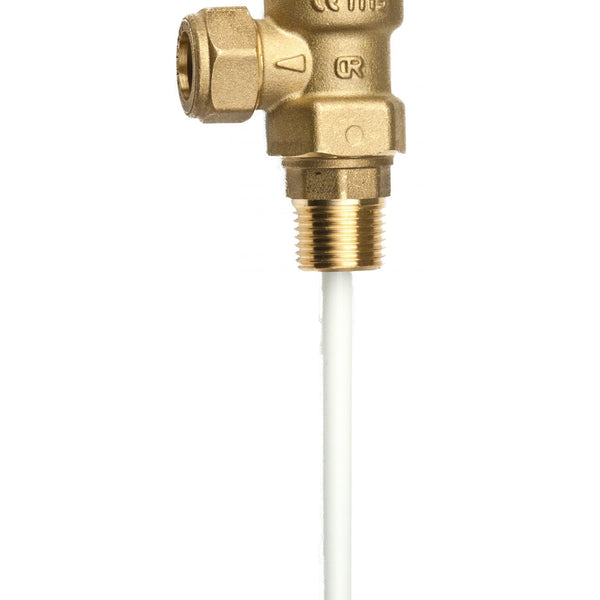

Temperature And Pressure Relief Valves Range R 1/2" x 15mm 10 Bar x 96mm

Inta’s Temperature and Pressure relief valves (T & P) are designed to discharge excess pressure which builds up inside sealed systems during the heating cycle. If the water inside the cylinder reaches above 90°C the T & P valve will discharge the hot water protecting the cylinder and components from excessive temperatures. During normal operating conditions nothing will be discharged from the valve.

• Prevents damage to heating systems by relieving excess temperature and pressure
• Factory pre-set temperature discharge at 90°C – non adjustable
• Range of factory set discharge pressures available
• 1/2" BSP T&P x 15mm 10 Bar (96mm probe)
• DZR brass body
