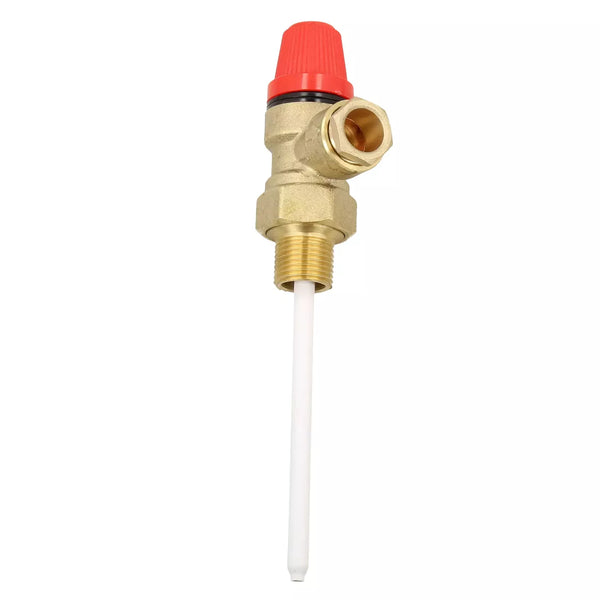

Temperature And Pressure Relief Valve 1/2" x 15mm 10 Bar

The TP relief valve controls and limits the temperature and pressure of the hot water contained in a solar domestic water storage heater and prevents it from being able to reach temperatures of over 95°C, with the formation of steam.
On reaching the settings, the valve discharges a sufficient amount of water into the atmosphere so that the temperature and pressure return within the system’s operating limits.

1 x 1/2" x 15mm 6 bar

The TP relief valve controls and limits the temperature and pressure of the hot water contained in a solar domestic water storage heater and prevents it from being able to reach temperatures of over 95°C, with the formation of steam.
On reaching the settings, the valve discharges a sufficient amount of water into the atmosphere so that the temperature and pressure return within the system’s operating limits.

Specification
Manufacturer ID    PN10
Nominal pressure    7bar
Temperature relief    90°C - 95°C
Pressure relief tolerance    +/-5%
KW rating    25kW
Maximum ambient temperature    100°C
Probe length    100mm
