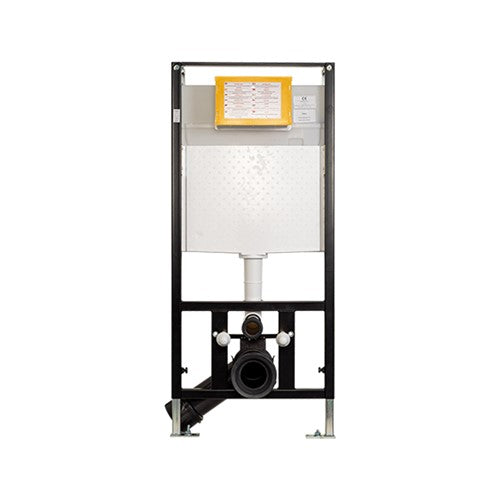

TECEprofil toilet module with Uni cistern, installation height 820 mm
BATHROOMS: FRAME
£379.00
TECEprofil toilet module with Uni cistern, installation height 820 mm
Description:
Toilet module including “easy fit” flush plate installation and conduit to connect electronic shower ...
Details

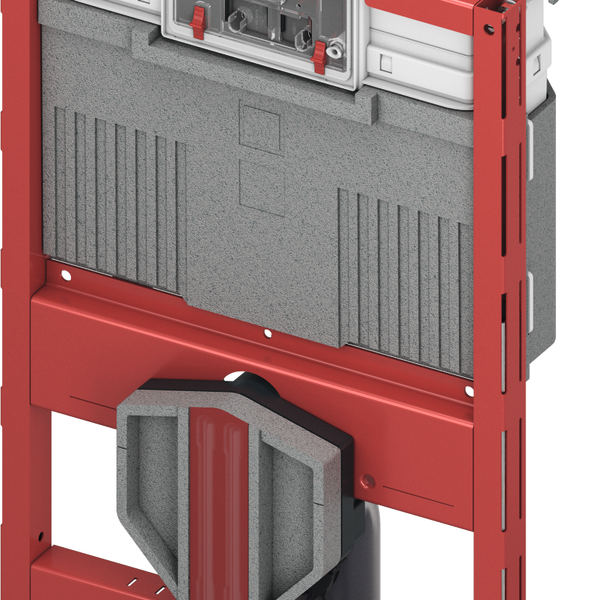

TECEprofil toilet module with Uni cistern, installation height 820 mm
Description:
Toilet module including “easy fit” flush plate installation and conduit to connect electronic shower toilets. For attaching to TECEprofil section tubes or as pre-wall or corner modules.
Uni cistern for front or top actuation:
Safety tank made of impact-resistant plastic, tested to EN 14055
Cistern fully pre-assembled and sealed
Cistern connection with outer thread R 1/2" at the side, compatible with quick adapters
10 litre tank volume; 6 litre pre-set standard flush volume, 4.5/7.5/9 litre flush volume can be set at any time; 3 litre partial flush volume for dual-flush system; optional setting of a 4/2 litre flush volume possible; remaining volume can be used for immediate cleaning flush.
Insulated against condensation water
For TECE flush plates and toilet flush handle
Can be used as a single or dual-flush cistern
“easy fit” flush plate installation
Installation tunnel for service opening, can be shortened without tools
Low-noise hydraulic filling valve, fitting group 1 according to DIN 4109
Flow control throttle without removing the drain valve
Module frame:
Self-supporting, powder-coated
Two M 12 retaining bolts and nuts
Toilet drain bend DN 90 with joint adapter DN 90/100, made of PP
Joint adapter also suitable for horizontal installation
Toilet connection set DN 90
WC connection box including shell protection and conduit for universal shower WC connection (check position), with junction box and cover for transformer.
Please order separately:
Toilet flush plate (see flush plates)
Insert chute for cleaning tablets (optional, front actuation only)
TECE upgrade set dry-wall for TECE shower toilets (optional)
Note:
If toilet ceramics with a reduced supporting surface are used (= distance from middle of fixing bolt to lower edge of supporting surface is not larger than 18 cm) - e.g. V & B Memento, Subway 2.0 - it is necessary to install the steel brace set 9041029 in the lower build space.
Caution:
If the flush plate is fitted in front of cisterns with low installation height and a compact ceramic is used, the toilet lid may occasionally drop down unintentionally. When using compact ceramics fit the flush plate with top actuation only.
Product Information
- Brand: GKS PLUMBING SUPPLIES
- Type: FRAME
- SKU: GK21031
