Optimized Product Title Danfoss KP35 Low Pressure Switch (060-113366) – Auto Reset, SPDT, 1/4" G Male (6 inHg - 108 psig)
- Home
- All Products
- Optimized Product Title Danfoss KP35 Low Pressure Switch (060-113366) – Auto Reset, SPDT, 1/4" G Male (6 inHg - 108 psig)
Optimized Product Title Danfoss KP35 Low Pressure Switch (060-113366) – Auto Reset, SPDT, 1/4" G Male (6 inHg - 108 psig)
£68.49
The Danfoss KP35 Low Pressure Switch (060-113366) is a heavy-duty, high-precision pressure controller engineered for automatic monitoring, system protection, and process control in commer...
Details

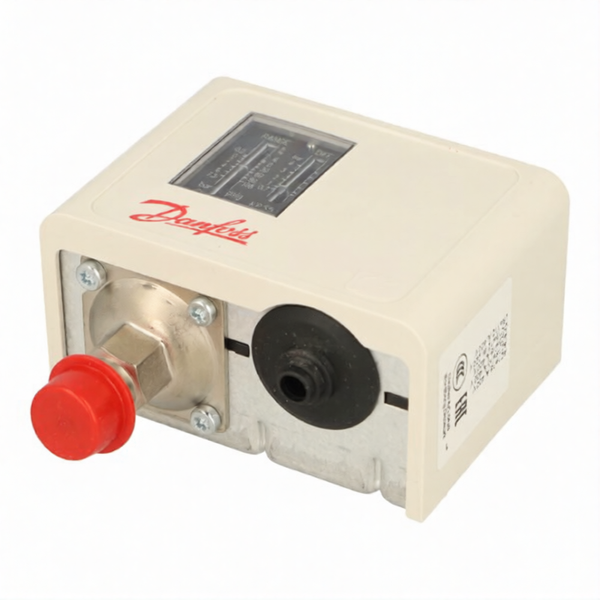

The Danfoss KP35 Low Pressure Switch (060-113366) is a heavy-duty, high-precision pressure controller engineered for automatic monitoring, system protection, and process control in commercial and industrial applications. Built with a wide regulation range of -0.2 to 7.5 bar (6 inHg – 108 psig), this auto-reset pressure switch ensures safe, reliable operation across pump controls, compressor cut-outs, HVAC systems, and process fluid lines.
Equipped with a high-performance SPDT (Single Pole Double Throw) contact system and an ultra-durable bellows sensing element, the KP35 delivers precise switching accuracy and long-term stability. Its standard 1/4" G Male thread (ISO 228-1) allows for straightforward installation in new builds or direct field replacements.
Key Features & Benefits
-
Wide Regulation Range: Controls pressures from -0.2 to 7.5 bar (6 inHg to 108 psig) for maximum application flexibility.
-
Auto Reset Convenience: Automatically restores normal system operation once operating pressure returns within set limits, eliminating unnecessary downtime.
-
Dual Circuit Switching: SPDT contact mechanism enables simultaneous load switching and alarm activation.
-
Adjustable Differential: Fine-tune cut-in and cut-out points with a flexible 0.7 to 4 bar (10–58 psi) differential range.
-
Durable Industrial Construction: IP30-rated housing with a rubber cable gland (6–14 mm) protects internal components in tough environments.
-
Multi-Industry Compatibility: Ideal for automated pump start/stop control, booster systems, compressor safety shutoff, and refrigeration lines.
Technical Specifications
| Parameter | Specification |
| Brand | Danfoss |
| Model / Series | KP35 |
| Part Code (MPN) | 060-113366 |
| Pressure Connection | 1/4" G Male (ISO 228-1) |
| Regulation Range | -0.2 to 7.5 bar (6 inHg – 108 psig) |
| Differential Range | 0.7 to 4 bar (10 – 58 psi) |
| Max Working Pressure | 17 bar (245 psig) |
| Max Test Pressure | 22 bar (319 psig) |
| Contact Function | SPDT |
| Reset Function | Auto |
| Contact Rating | AC15=10A/400V, AC1=16A/400V, AC3=16A/400V, DC13=12W/220V |
| Ambient Temperature | -40°C to +65°C |
| Enclosure Protection | IP30 / NEMA 1 |
