MCB's SP TYPE B*CUB 50amp

This Type B,  MCB's from CED is manufactured for consumer units with 6kA (actual tested at 6kA) breaking capacity. The Type B characteristics offers instantaneous short circuit response level of 3 to 5 times the normal rated current, making it suitable for circuits with moderate inrush currents for most domestic/small commercial building protection applications.

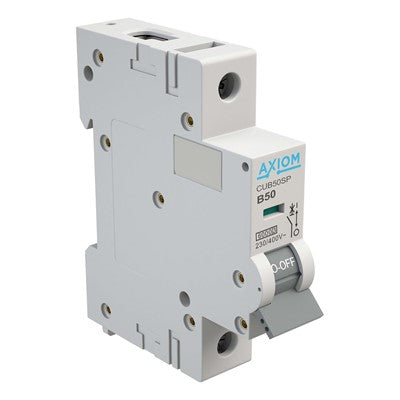

PLEASE NOTE THE IMAGE SHOWN FOR ILLUSTRATION PURPOSES.

SALE IS FOR 1 X MCB CUB Single Pole

Features & Benefits
Provides positive contact indication in accordance with IEE wiring regulations
Provides protection against short circuits and overload with thermal magnetic operation
Manufactured to BS EN 60898
Type B characteristics
Line protective switches
No tools required for mounting or dismantling
Supports fast and convenient removal from the assembly
Safety Information
IMPORTANT - Before undertaking any work on or maintenance of fitting:-
ANY ELECTRICAL WORK MUST ONLY BE UNDERTAKEN BY QUALIFIED PROFESSIONAL. Switch off power supply and allow sufficient time to cool before handling
Do not dispose of de commissioned fitting in household waste
Dispose of fitting in the appropriate section of your local civic amenity site or recycling centre only
Product Summary

EXAMPLE:

This Type B, 10Amp MCB from CED is manufactured for consumer units with 6kA (actual tested at 6kA)
breaking capacity. The Type B characteristics offers instantaneous short circuit response level of 3 to 5 times
the normal rated current, making it suitable for circuits with moderate inrush currents for most domestic/small
commercial building protection applications.
Technical Specifications:

General Information

Product Colour/Finish    Grey
Dimensions (mm)           40x18x80mm (45mm Projection)
Ingress Protection (IP)     n/a
Electrical Rated Voltage   230 - 240V
Frequency (Hz)                50/60Hz
Sensitivity                        n/a
Terminal Capacity (²mm) Up to 35mm²

Performance Data
Specifications IEC 60898-2
AMPS VARIOUS
Poles Single
Type B
Breaking Capacity 6kA SP
Approvals CE, RoHS
Construction
Weight 0.115Kg
Warranty Years 1Yrs
Body Material Acrylic
Others
Applications Domestic and commercial applications
