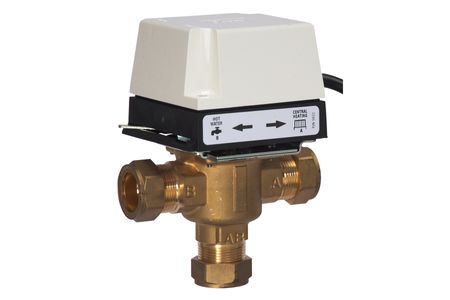

Danfoss HS3B28 28mm 3 Port Valve 087N665100

Danfoss H-series paddle valves are available in 3-port versions in a wide range of sizes for both copper and iron pipework. All valves provide 100 Percentage tight shut-off. Actuators for mid-position, diverter and 2-port on or off applications complete the range. Valve bodies and actuators may be purchased separately or in convenient sets. For simplicity of installation and serviceability, assembly of the actuator to the valve body is made on-site and using the screws provided.
External compression
Paddle type valve
Mid-position
Coefficient of flow 7.9 metres cube per hour
0.7 bar maximum differential pressure
Maximum working pressure is 10 bar
Maximum operating temperature is 95C
IP40 Rating
