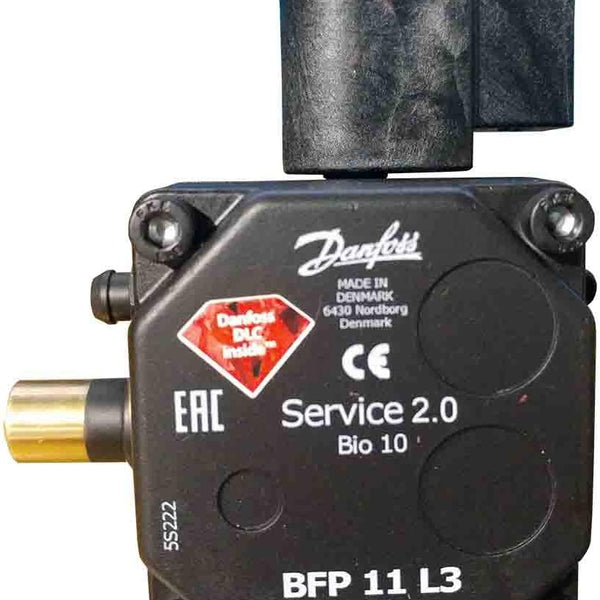

Danfoss 071N0141 BFP11 L3 Fuel Pump

Danfoss Oil Pump, BFP11 L3 Part No. 071N7141

• Designed for small/medium-sized domestic oil burners
• Fits a multitude of oil burners
• Fuel compact pump regulator with membrane
• Cartridge filter and adjustement of the pressure on the front
• New Part Number: 071N0141 Replaces 071N0141

The Danfoss Oil Pump, BFP11 L3 is designed for small/medium-sized domestic oil burners. The pump has the 2- pipe screw under the cover. Without the horse-shoe-shaped washer, the pump has been adjusted for 2-pipe operation. With the washer, the pump has been adjusted for 1-pipe operation.

This pump fits various oil burners and is a direct replacement for the following previous Danfoss BFP11L3 Models:

071N0101, 071N0141, 071N0142, 071N0144, 071N0146, 071N0152, 071N0153, 071N0184, 071N0210, 071N0213.

SPECIFICATION

• Part Number: 071N0141
• Oil type: Kerosene/Light oil
• Rotation: Left
• Max speed: 3450
• Min speed: 2400
• Stage:1
• Pipes:1
• Nozzle/pressure outlet: Right
• Filter type: Ring
• Mesh: 200
• Max viscosity mm²/s12
• Min viscosity mm²/s1.3
• Max pressure feed line:2 Bar
• Factory pressure setting: 10 Bar
• Min pressure: 7 Bar
• Max vacuum suction line: 0.4 Bar
• Coil voltage: 220 - 240v
• Coil consumption: 9v
• Shaft: 8 mm
