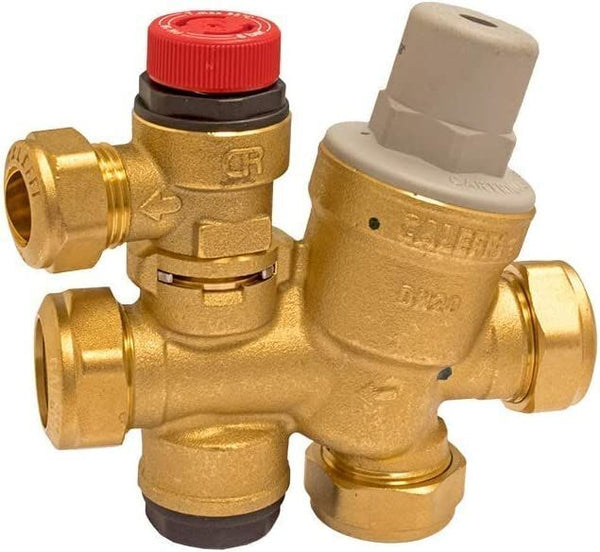

Cylinder 3 BAR Pressure REDUCING Valve with 6 BAR Pressure Relief Valve

Caleffi Multibloc (Cold) Water Control Valve 3 & 6Bar comprises of a manifold containing a pressure reducing valve, a cold water balancing port with check valve, a check valve and a preset pressure relief valve. The unit can be installed either horizontally or vertically with the PRV always first in line.

Features:

• Specially designed for hot and cold services in houses or apartments.
• Equalises the hot or cold water supplies or both.
• Prevents excessive pressure at outlets such as taps and showers.
• Specially shaped diaphragm to give accurate pressure regulation in response to changes in downstream pressure.
• The larger outlet chamber creates a low exit velocity which is effective in reducing water noise.
• The control stem housing of the cartridge is made from a plastic material with a low co-efficient of adhesion.
• Reduces scale deposits forming, the main cause of pressure reducing valve malfunction.

Technical data:

• Brand - Altecnic
• Product Type - Inlet Control Group Valve Unvented
• Diameter - 22mm
• Connection - 22mm Copper To Copper
• Length - 97mm
• Height - 110mm
• Maximum Working Temp - 65DegreeC
• Pressure Reducing Valve Setting - 3.0Bar
• Max Inlet Pressure On Application - 12.0Bar
• Safety Relief Valve Setting - 6.0Bar

Standards & Certifications:

• Certification - EN 1567
